Screen Door Hardware

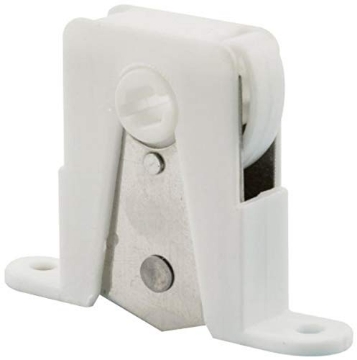

This Andersen roller assembly is an insert style with mounting tabs and included installation screws. The high-density polyethylene housing has an aluminum inner housing with a 1 in. high density stainless steel roller. This roller assembly was used on the 200 Series Perma-Shield gliding doors and 400 Series Frenchwood doors. Height adjustment is down from the side rather than the top or the edge of the door.

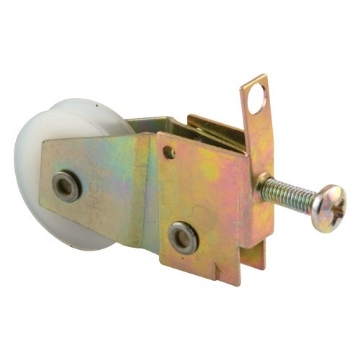

This spring-loaded style sliding screen door roller is used by doors made by Moss. The steel housing has a steel inner housing with a 1 in. high density polyethylene ball bearing roller. The housing has a mounting tab with a hole for the installation screw. There is an adjustment screw at the end of the housing to adjust the height.

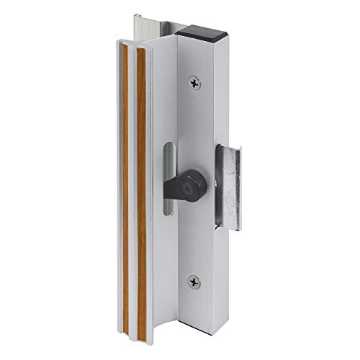

This aluminum patio door handle is a surface with clamp latch style. Often found on older style patio doors, it is mounted on the door's inside frame and the clamp latch latches onto an extrusion (astragal) on the jamb. It has 2 inch handle height extruded aluminum inside handle. The clamp has a 1/4 inch profile and 1/2 inch projection when in locked position. To key this unit use Prime-Line part E 2071.

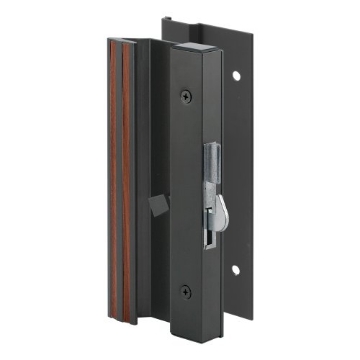

This black finish patio door handle is a surface with hook latch style. Often found on older style patio doors, it is mounted on the door's inside frame and the hook latch engages the keeper mounted on the jamb. It has a 7/8 inch low height extruded aluminum inside handle with an anti-lift feature on the hook latch which has a 7/16 inch profile. The outside handle is a low profile non-keyed extruded pull. It can be keyed by installing Prime-Line part E 2071.

This is a non-handed, diecast chrome, flush mount patio door handle with wood pull handle. It is a common, and popular design that fits most doors with a cutout for a flush handle set. The mounting holes are 6-5/8 in. on center. The inside and outside handles are 7/8 in. wide and 7-1/4 in. tall. There are four different sized hook latches to accommodate the needs of the door. Keeper is included.

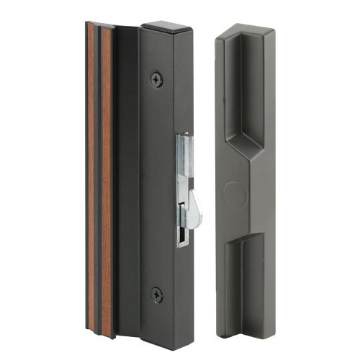

This hook-style sliding patio door handle set is constructed of extruded aluminum and diecast components and it includes an inside and outside pull. The inside pull has a 3/4 in. thick base, and the pull projects a total of 1-3/8 inches towards the inside of the home. It features a durable steel latch with a 7/16 in. hook profile and an anti-lift bar for additional security. The inside pull comes in an anodized black finish and features a wood grain detail, and the non-keyed exterior Diecast-constructed pull comes in a black painted finish. This handle set mounts on the surface of the sliding door frame and its hook latch and anti-lift bar engage into a keeper which is also included with this item. The mounting holes for this handle set are spaced at 4-15/16 inches (center to center), and it is a reversible, non-handed handle set that can be mounted on both left-hand and right-handed sliding doors. This patio door handle set is used by many patio door manufacturers. All fasteners necessary for installation of this item are included within packaging. For modifying this handle set to include an outside keyed-locking pull, consider the following items; Model #141237 (Amazon’s ACIN: B00EJUFRXM), Model #141860 (Amazon’s ACIN: B000BDB6U4) and Model #E2000 (Amazon’s ACIN: B000I1EC2S). * *
