Telemecanique

This pressure switch features a fixed differential, an actuated diaphragm and contacts designed to open with rising pressure. It is designed to control electrically driven air compressors and pumps.

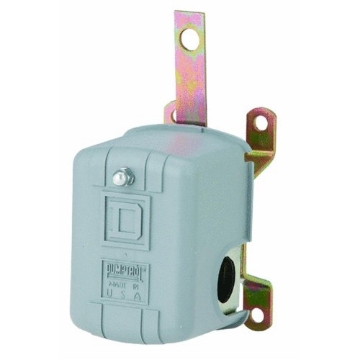

This float switch is designed to control small motor loads directly. It helps to provide a simple, positive means of mechanically altering two pumps or motors. It includes an external pointer, nameplate, rod and float. Class 9036 switches are single-lever operated.

Float Switches opens and closes an electric circuit by upward movement of the lever arm, controlling the liquid in a receiving tank or sump. The contacts of this reverse action switch open on liquid rise and are used for tank filling applications. Maximum force to trip the switch is 8 oz. or 227 g. Mount the switch horizontally using the mounting feet. This float switch does not provide motor protection, but it may be used as a pilot to operate an overload-protected starter.

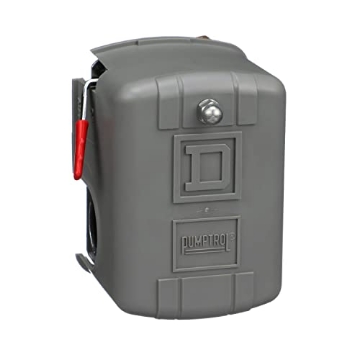

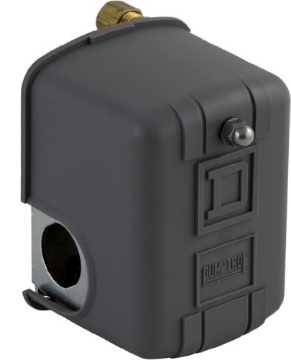

This Pumptrol FHG12J52XBP air-compressor pressure switch is the most trusted brand in residential, commercial and industrial air compressor applications. The FHG12J52XCP controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 125 PSI. The switch has a 1/4 inch NPSF internal fluid connection and is suitable for use with a lower-horsepower motor with 1.5 HP or less. The non-adjustable differential is 30 PSI and the adjustable cut-out range is 70 PSI to 150 PSI. The switch is diaphragm actuated and has a fixed differential. The threshold or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections and two 2-pole NC contacts open on rising pressure.

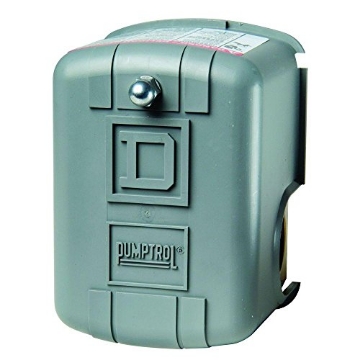

This Pumptrol FHG2J27CP air-compressor pressure switch is the most trusted brand in residential, commercial and industrial air compressor applications. The FHG2J27CP controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 100 PSI. The switch has a 1/4 inch NPSF internal fluid connection and is suitable for use with a lower-horsepower motor with 1.5 HP or less. The switch is diaphragm actuated and has a fixed differential. The threshold or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections and two 2-pole NC contacts open on rising pressure.

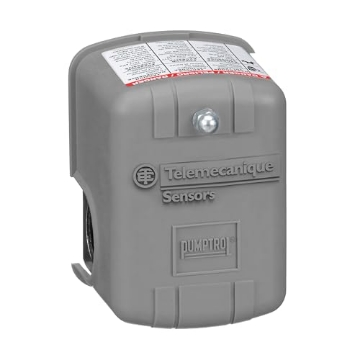

The Pumptrol electric pressure switch works with jet pumps, submersible pumps and reciprocating pumps. The 20 - 40 PSI pressure switch features a 1/4 inch pressure connection.
