Sliding Door Hardware

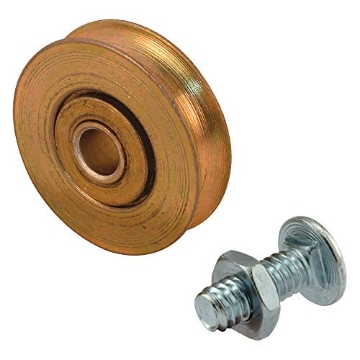

These rollers are constructed of steel components and include a set of installation nuts and bolts for each. Each wheel has a concaved (center grooved) edge and features a steel inner race, steel ball bearings and a 1/4 in. inside diameter hole. The outside diameter of these rollers measures 1-1/4 in. and the width (or thickness) is 5/16 in.. These wheels are commonly used to repair damaged sliding patio door roller assemblies in both the glass and screen sliding door panels. These wheels are used by a variety of patio door manufacturers.

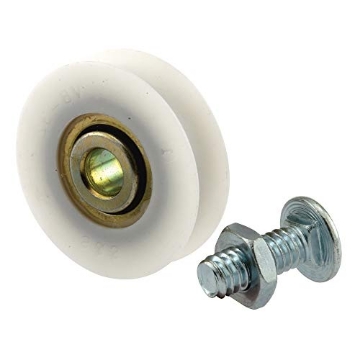

This is a 1-1/4 in. diameter concave nylon ball bearing roller replacement used on a variety of patio, and wardrobe door roller assemblies. It has a steel center race and the standard 1/4 in. axle hole and is 5/16 in. wide. Included are 2 axle carriage bolts and carriage nuts for installation.

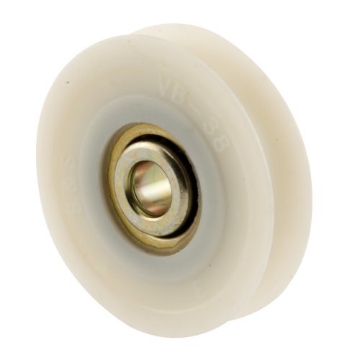

This is a combination of a 1-1/2 in. diameter nylon concave or grooved ball bearing roller that is 5/16 in. thick with a 1/4 in. axle hole and a combination of 5 different axle choices. Depending on the application, you can choose to rivet the roller into place or use a roll pin, drive pin, binder post and screw or bolt and nut. Regardless of how you need to install the new roller into your existing roller housing, in most cases, one of the five choices will work.

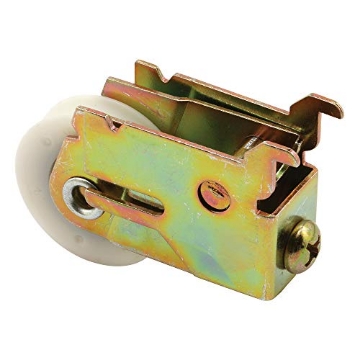

This is a unique back patio door roller assembly with a 1-1/4 in. concave nylon ball bearing roller. The stamped steel housing is 11/16 in. wide and 1-3/8 in. tall. It is rear adjusting with a set of tabs or ears that insert into slots in the door's bottom rail. No mounting screws required. It is used by Premiere patio doors.

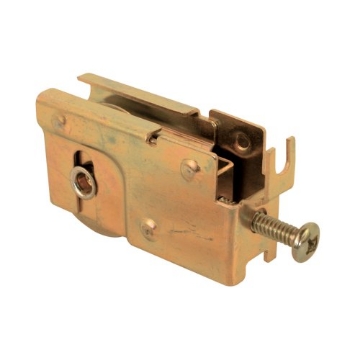

This is a C-tab patio door roller assembly with a 1-1/8 in. diameter concave, or grooved, steel ball bearing roller. As the C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 23/32 in. wide and 1-3/16 in. tall with a dimple width of 7/8 in., and most often used by Solar Industries and a variety of other patio door manufacturers.

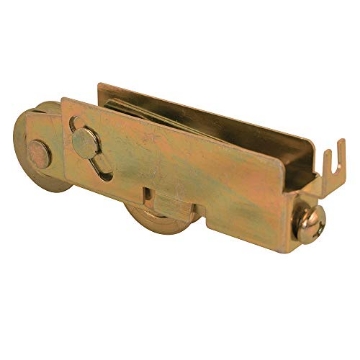

This is a steel tandem C-tab roller assembly with 1-1/8 in. steel ball bearing rollers. The C-tab fits around the corner screw and captured by the side stile and bottom rail as they are drawn together. The adjustable stamped steel housing is 11/16 in. wide with a flare width of 13/16 in., 1-1/16 in. tall and 3-1/8 in. long. Used by Pacific, Elco and a variety of other sliding patio door manufacturers.
