Screen Door Hardware

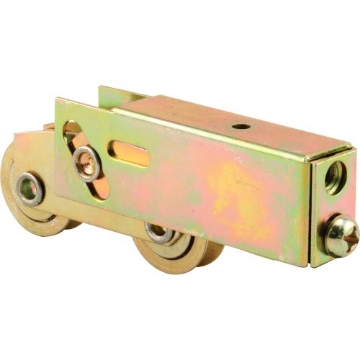

This is a plain back tandem wheel roller assembly that is constructed of a pair of steel wheels and an adjustable steel housing. Each wheel has a concaved (center grooved) edge and features a steel inner race, steel ball bearings and a 5/16 in. roller width. The outside diameter of these rollers is 1-1/4 in. and they are used to replace damaged patio door roller assemblies in sliding glass doors. The housing is 1-1/32 in. tall, 11/16 in. wide and 3-1/8 in. long with a 1/4-20 threaded mounting hole on the back end, and an optional use hole on top. These tandem roller assemblies are used by a variety of patio door manufacturers.

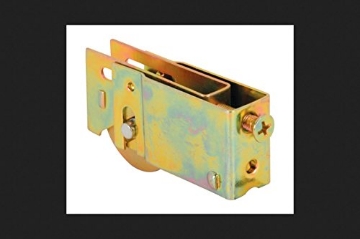

This is a plain back patio door roller assembly with a 1-1/4 in. concave steel ball bearing roller. It has a plain back housing that is 3/4 in. wide with a 7/8 in. flare and 1-3/16 in. tall. It is rear adjusting with a threaded mounting hole on the back end. It is used by Nu-Air and a variety of other sliding patio door manufacturers.

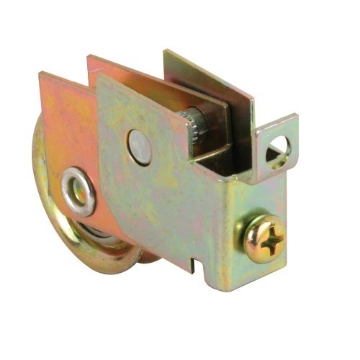

This is an F-tab patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide, 1-3/32 in. tall with a rear adjusting screw. Used by Superlite, Fenton and a variety of other sliding patio door manufacturers.

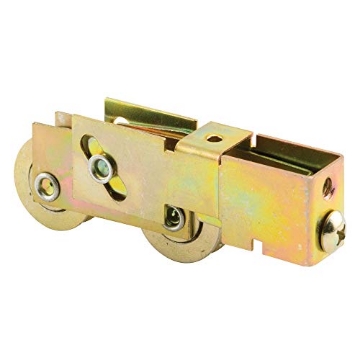

This is a plain back tandem roller assembly with two 1-1/8 in. concave steel ball bearing rollers. The stamped steel housing is adjustable and used by Milgard as well as a variety of other manufacturers. Primarily used on vinyl patio doors. The housing is 3/4 in. wide and 1 in. tall with a 1/4-20 threaded mounting hole on the back end and an optional use #10-32 threaded hole on the top.

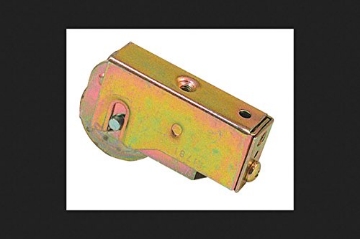

This is a plain back patio door roller assembly with a 1-1/2 inch concave or grooved steel ball bearing roller. The housing is 3/4 inch wide and 1-1/8 inch tall. It is rear adjusting with a 1/4-20 threaded mounting hole on the back end and an optional use #10-32 threaded hole on top. It is used by a variety of sliding patio door manufacturers.

This is a F-tab tandem roller assembly with two 1-1/8 in. concave steel ball bearing rollers installed. When the corner screw passes through the F-tab, the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The adjustable stamped steel housing is 11/16 in. wide with a 13/16 in. flare, 1-1/8 in. tall and 3-1/8 in. long. Used by a variety of sliding patio door manufacturers.
