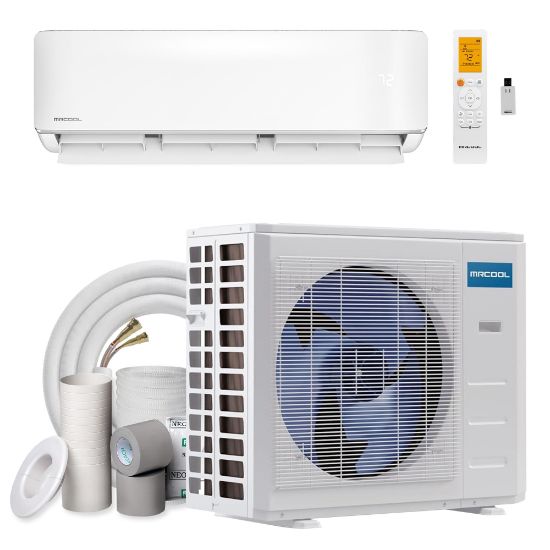

MR COOL LLC DIY24HPWM230D25 DCTL SPLT HT PMP 24K BTU (EA)

MRCOOL DIY 5th Gen E Star 1 Zone 24000 BTU 22.7 SEER Ductless Mini Split Heat Pump
Manufacturer: MR COOL LLC
SKU: FDEJD-4028727
$4,080.78
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
**** IF THIS PRODUCT IS SHOWING AS UNAVAILABLE, PLEASE CALL YOUR LOCAL STORE TO ORDER. ****The patented MRCOOL 5th Generation DIY E Star 24K BTU, 22.7 Seer2 Ductless Heat Pump system offers a complete solution to your home's heating and cooling needs. This system can heat and cool an area up to 1000 sq. ft and is capable of an Energy Star certified, 22.7 Seer2 efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included patented, pre-charged, 25 ft. line set, some hand tools, and a few hours of time this entire system can be completely installed without the need to hire a costly HVAC contractor. No vacuuming, pressure testing or expensive tools required. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include Auto, Heat, Cool, Fan-Only, Dry (dehumidification) and Sleep. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you're not at home. No problem. The MRCOOL system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MRCOOL stands behind the quality and workmanship of this system.

The MRCOOL DIY 5th Gen E Star mini split heat pump system uses the new, environmentally friendly, R-454B refrigerant.

The 25' pre-charged Quick Connect line set included. Enabling you to install the DIY 5th Gen E Star system in a matter of hours without the assistance of an HVAC professional.

Keep the included remote close by and the "Follow Me" function can track the air temperature around you to ensure maximum comfort. Loaded with sensors capable of monitoring nearby temperatures, the remote then transmits that to the central system.

The Wi-Fi control module simplifies system setup and gives you access to your system through your phone, Amazon Alexa or Google Assistant, removing the necessity of walking to the thermostat for any desired temperature changes.

Equipped with leak detection protection that keeps you informed about any critical drops in refrigerant levels, the system stands resilient against potential problems.

The Gold Fin Advantage technology envelops the coils with a gold nano-coating, promising corrosion resistance even in damp coastal regions.

Variable-speed, DC inverter compressor technology improves comfort, reduces operating costs and is unbelievably quiet.

Cooling operating range -13 F to 122 F, heating operating range -13 F to 75 F.

5 year parts warranty and 7 year compressor warranty included. MRCOOL offers an optional Extended Limited Lifetime Replacement Warranty- see warranty document for details.

UL listed, CSA listed, ETL listed, AHRI certified, NEEP ccASHP listed
Products specifications
Attribute name Attribute value
Air Handler Depth 8.90
Air Handler Height 13.19
Air Handler Width 42.52
Bluetooth Compatible Yes
Brand Name MRCOOL
BTU Cooling 24000
BTU Heat Rating 24000
Certification and Listings AHRI Certified, UL/CSA/ETL Listed
Condenser Depth 16.14
Condenser Height 31.89
Condenser Width 37.24
Decibel Rating 54
Energy Star Certified Yes
Maximum Coverage Area 1000
Maximum Fuse 25
Mount Location Wall
Product Type Ductless Mini Split Heat Pump
Remote Control Yes
Seasonal Energy Efficiency Ratio 22.7
Series DIY 5th Gen E Star, 230V,
Sub Brand DIY-24-HP-WM-230D25-O
Volts 230
WiFi Compatible Yes
Zone Capacity 1
